50W 330mm Cutting Length PCB Cutting Machine 500mm/s

Name: 50W 330mm Cutting Length PCB Cutting Machine 500mms
Brand: Winsmart
Price: 1 USD

Brand Name : Winsmart

Model Number : SMTAD4

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD1-10000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 2-5 days

Packaging Details : Plywood case

Warranty : 1 year

Condition : New

Blade Material : High Speed Steel

Cutting Speed : 100-500mm/s

Power : 50W

Name : Pizza Cutter PCB Depanelizer

Contact Now

Pizza Cutter PCB Depanelizer 300mm Cutting Length PCB Cutting Machine

Technical Specification:

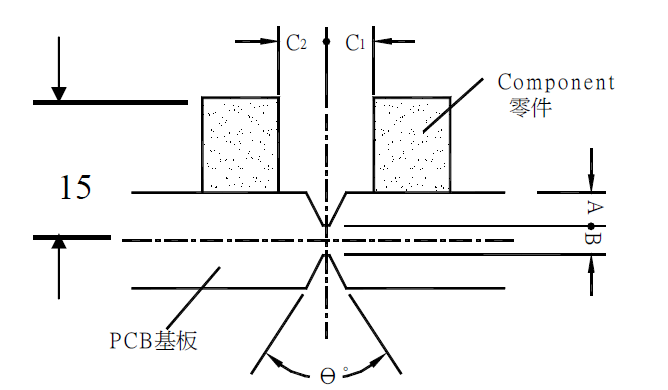

	A : > 0.25mm B: 1.0mm(Max) Standard cutter : C2: ≧2mm C1: ≧0.3mm Θ: ≧20⁰
Max.Cutting length (mm)	15-300mm
Cutting thickness (mm)	0.8~2.0
Cutting Speed (mm/s)	0~400
Voltage (VAC)	220
Machine Weight (KG)	42

Features:

1. Minimize the shearing stress to avoid micro-cracks of the solder joints.

2. Guiding device of the “V-CUT” can easy setting the edge of PCB and the height of the tabletop to fit for difference kinds of thickness of PCB.

3. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.

4. Cutters can be re-grinded.

5. The shape of the cutter can be customer made.

Installation:

Placing the machine on the table which should be flat and stable.

The parallelism of the machine can be adjusted by the foot on a small scale

Power connection:

Connect the power plug to the 220VAC 50HZ / 110VAC 60HZ power supply.

Turn on the power switch and lower blade start to turn, then the machine can work.
